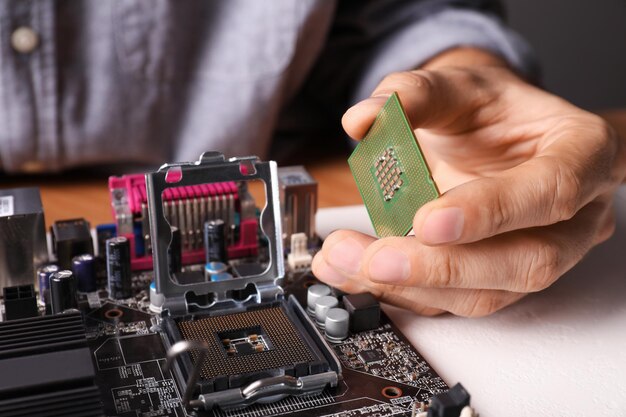

I remember trying to upgrade my PC and not knowing if my new CPU would work with my motherboard. Figuring out compatibility can be confusing, but I’ve learned some tips to help. Let me guide you through it!
To find out what CPU is compatible with your motherboard, check the socket type and chipset. You can find this information in your motherboard’s manual or on the manufacturer’s website, ensuring you choose a CPU that fits perfectly.
In this article, we will discuss how to determine what CPU is compatible with your motherboard, including tips on checking socket types, chipsets, and other important factors to ensure a perfect match for your PC upgrade.
Understanding CPU and Motherboard Compatibility
What is CPU Compatibility?
CPU compatibility refers to the ability of a CPU to function properly with a given motherboard. This involves several factors, including the CPU socket type, chipset, BIOS version, and power requirements. Ensuring compatibility is crucial for the overall performance and stability of your system.
The Role of the Motherboard in Compatibility
The motherboard determines which CPUs you can use. It hosts the CPU and other key components like RAM, GPU, and storage devices. Therefore, understanding the relationship between the CPU and the motherboard is essential for a successful build.
Key Factors to Consider
CPU Socket Type
The CPU socket is a physical interface between the motherboard and the processor. Different CPUs require different socket types, so it’s vital to match the CPU with the correct socket. Common socket types include LGA for Intel and AM4 for AMD.
Chipset Compatibility
The chipset is another crucial factor. It dictates how well the CPU can communicate with other components, such as RAM and storage. Each chipset is designed to support specific CPUs, so make sure the motherboard’s chipset is compatible with your chosen processor.
BIOS Version
The BIOS (Basic Input/Output System) acts as the interface between the operating system and the hardware. Sometimes, a motherboard requires a BIOS update to support newer CPUs. Without the correct BIOS version, the motherboard may not recognize the CPU, leading to compatibility issues.
Power Requirements
Different CPUs have varying power needs. Ensuring that your power supply and motherboard’s VRMs (Voltage Regulator Modules) can deliver adequate power is essential for stability and performance.

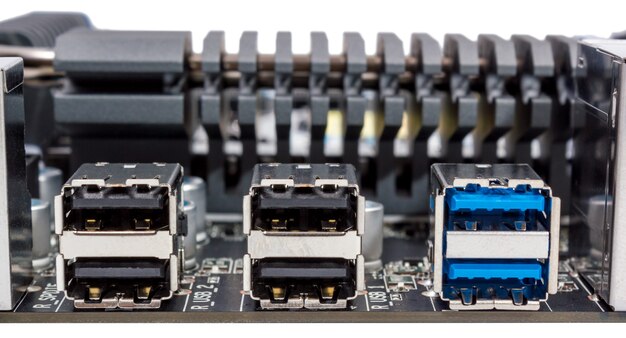

CPU Socket Types and Their Compatibility
Common CPU Socket Types
The most common CPU socket types are:
- LGA 1700: Used by Intel’s 12th and 13th generation CPUs.
- AM4: Used by AMD’s Ryzen processors.
- LGA 1200: Compatible with Intel’s 10th and 11th generation CPUs.
- TR4: Designed for AMD’s Threadripper CPUs.
Each socket type is specific to certain CPU families, so it’s crucial to ensure your CPU and motherboard share the same socket.
Matching CPU to Socket Type
For instance, if you have an Intel Core i9-11900K, you’ll need a motherboard with an LGA 1200 socket. Similarly, if you’re using an AMD Ryzen 7 5800X, your motherboard should have an AM4 socket.
Understanding Chipset Compatibility
What is a Chipset?
The chipset is a group of microchips on the motherboard that controls data flow between the CPU, RAM, storage, and other peripherals. It plays a critical role in determining what features and capabilities are available to your CPU.
How Chipset Affects CPU Compatibility
Different chipsets support different CPUs. For example, Intel’s Z590 chipset supports both 10th and 11th generation CPUs, while the B450 chipset from AMD supports Ryzen 2000, 3000, and 5000 series processors.
Popular Chipsets for Intel and AMD CPUs
- Intel Z590: Supports overclocking and PCIe 4.0.
- AMD X570: Offers PCIe 4.0 support and robust power delivery.
- Intel B460: Budget-friendly, but no overclocking support.
- AMD B550: Supports PCIe 4.0 for GPUs and NVMe drives.
The Importance of BIOS Version
How BIOS Affects Compatibility
The BIOS initializes and tests your system hardware during the boot process. If the BIOS is outdated, it might not recognize newer CPUs, leading to boot failures or system instability.
Updating the BIOS for CPU Support
If your motherboard doesn’t support your CPU out of the box, a BIOS update may be necessary. This process involves downloading the latest BIOS version from the manufacturer’s website and updating it through the BIOS menu or a dedicated utility.
Power Requirements and Compatibility
Power Supply Considerations
Ensure that your power supply unit (PSU) provides sufficient wattage to support your CPU and other components. Underpowered systems can lead to instability or failure to boot.
VRMs and Their Role in CPU Support
Voltage Regulator Modules (VRMs) on the motherboard ensure that the CPU receives a stable and consistent power supply. High-end CPUs often require motherboards with robust VRMs to handle the increased power demands, especially when overclocking.
Checking Compatibility: Step-by-Step Guide
Using Online Tools
There are several online tools available to check CPU and motherboard compatibility. Websites like PCPartPicker allow you to input your CPU and motherboard model to ensure they are compatible.
Consulting Motherboard Manufacturer
Always consult the motherboard manufacturer’s website for a list of supported CPUs. This information is typically found in the motherboard’s specifications or support section.
Checking the Motherboard Manual
The motherboard manual often includes a CPU compatibility list. This is a reliable source of information to ensure your components will work together.
Common Compatibility Issues and How to Solve Them
No POST (Power-On Self Test)
If your system fails to POST, it could be due to CPU incompatibility. Double-check the socket type, chipset, and BIOS version.
System Instability
Random crashes or freezes may indicate that your CPU and motherboard are not fully compatible, possibly due to power delivery issues or an outdated BIOS.
BIOS Not Recognizing CPU
If the BIOS doesn’t recognize your CPU, it may need an update. Follow the manufacturer’s instructions to update the BIOS.
Upgrading Your CPU: What You Need to Know
Compatibility with Existing Components
When upgrading your CPU, ensure it’s compatible with your existing motherboard, RAM, and power supply. This will save you from unnecessary expenses and headaches.
Performance Improvements
Upgrading to a more powerful CPU can significantly boost your system’s performance, especially in tasks like gaming, video editing, and multitasking.
Future-Proofing Your Build
Selecting a CPU and Motherboard for Future Upgrades
When choosing a CPU and motherboard, consider your future needs. Opt for a combination that supports the latest technologies, such as PCIe 4.0, DDR5 RAM, and advanced cooling options.
Balancing Performance and Budget
While it’s tempting to go for the latest and greatest, balance your performance needs with your budget. Sometimes, a slightly older CPU and motherboard can offer excellent value and performance.
Top CPU and Motherboard Combinations
Best Intel Pairings
- Intel Core i9-12900K with Z690 Motherboard: Ideal for high-end gaming and content creation.
- Intel Core i5-11600K with B560 Motherboard: Great balance between price and performance.
Best AMD Pairings
- AMD Ryzen 9 5900X with X570 Motherboard: Perfect for gaming and heavy multitasking.
- AMD Ryzen 5 5600X with B550 Motherboard: Excellent for gaming on a budget.
Easy way to check if your motherboard is compatible with a CPU
The easiest way to check if your motherboard is compatible with a CPU is to match the socket type. Look up your motherboard’s socket type in the manual or online, then ensure the CPU you’re considering uses the same socket.
How to Find Compatible Motherboards for Your Intel® Boxed Desktop Processor
To find compatible motherboards for your Intel® Boxed Desktop Processor, follow these steps:
- Check the Socket Type: Identify the socket type of your Intel® processor (e.g., LGA 1200, LGA 1700) and look for motherboards with the same socket.
- Verify Chipset Compatibility: Ensure the motherboard’s chipset supports your processor. Intel® processors are often compatible with specific chipsets (e.g., Z690, B560), so check the processor’s specifications.
- Visit Intel’s Compatibility Tool: Use Intel’s Processor Compatibility Tool online to find a list of motherboards that are certified to work with your specific processor model.
- Consult Manufacturer’s Website: Visit the motherboard manufacturer’s website and check the CPU support list for your motherboard model. This will confirm compatibility and ensure optimal performance.
What Motherboard Do I Have?
To identify your motherboard, you can:
- Check the System Information: On Windows, press Windows + R, type msinfo32, and hit Enter. Look for the “BaseBoard” section, where you’ll find the motherboard’s manufacturer and model.
- Use Command Prompt: Open Command Prompt and type wmic baseboard get product,Manufacturer,version,serialnumber to get details about your motherboard.
- Physically Inspect the Motherboard: If you’re comfortable opening your PC case, the motherboard model is usually printed directly on the board itself, often near the CPU socket.
What CPU Socket Does My Motherboard Have?
To find out what CPU socket your motherboard has, you can:
- Check the Motherboard Manual: The socket type is usually listed in the specifications section of your motherboard’s manual.
- Use System Information: On Windows, press Windows + R, type msinfo32, and check the “BaseBoard” or “Motherboard” section for details, then look up the model online to find the socket type.
- Inspect the Motherboard Directly: If you can open your PC, the socket type is often labeled near the CPU slot on the motherboard.
CPU Support List: What Is It?
A CPU support list is a document or online resource provided by motherboard manufacturers that lists all the compatible processors for a specific motherboard model. It includes information on which CPUs work with the motherboard, including supported socket types, chipsets, and sometimes BIOS versions needed for certain processors. This list helps you ensure that your CPU will function properly with your chosen motherboard.
Overview of CPU and Motherboard Relationship
The CPU and motherboard must be compatible for a computer to function. The motherboard provides the physical socket and necessary connections, while the CPU needs to fit that socket and work with the motherboard’s chipset.Compatibility guarantees smooth operation and peak performance.
Importance of CPU-Motherboard Compatibility
CPU-motherboard compatibility is crucial because it ensures that the processor and motherboard can work together effectively. The CPU must fit the motherboard’s socket type and be supported by its chipset. Proper compatibility guarantees stable performance, system reliability, and the ability to utilize all features and upgrades.
Common Issues with Incompatible CPUs and Motherboards
Common issues with incompatible CPUs and motherboards include:
- **System Failure to Boot:** The computer may not start at all if the CPU doesn’t fit the socket or isn’t recognized by the motherboard.
- **Performance Problems:** Even if the system boots, you may experience instability, crashes, or suboptimal performance.
- **BIOS Errors:** Incompatible CPUs may require BIOS updates that the motherboard doesn’t support, leading to errors or limited functionality.
- **Overheating:** Mismatched components might cause improper cooling, resulting in overheating and potential damage.
- **Feature Limitations:** Certain features of the CPU, like overclocking or specific instruction sets, may not work if the motherboard doesn’t support them.
Potential Risks of Using Incompatible CPUs and Motherboards
Using incompatible CPUs and motherboards can pose several risks:
- **System Instability:** Incompatibility can lead to frequent crashes, freezes, and errors, disrupting your computing experience.
- **Hardware Damage:** Incorrect fitting or voltage mismatches can damage both the CPU and motherboard, potentially leading to costly repairs or replacements.
- **Overheating:** Mismatched components may cause improper cooling, increasing the risk of overheating and damaging your hardware.
- **Reduced Performance:** You may not be able to fully utilize the CPU’s capabilities, resulting in slower performance and inefficient operation.
- **Voided Warranty:** Using unsupported hardware may void warranties, leaving you responsible for any damage or issues that arise.
Troubleshooting Incompatibility Issues
To troubleshoot CPU and motherboard incompatibility issues, follow these steps:
- **Check Compatibility Lists:** Verify that both your CPU and motherboard are listed as compatible on their respective support lists or manufacturer websites.
- **Inspect Socket Types:** Ensure the CPU socket on the motherboard matches the CPU’s socket type.
- **Update BIOS:** Update the motherboard’s BIOS to the latest version to support newer CPUs or resolve compatibility issues.
- **Verify Chipset Support:** Confirm that the motherboard’s chipset supports the CPU you are trying to use.
- **Check for Physical Issues:** Ensure the CPU is properly seated in the socket and that there are no bent pins or debris.
- **Consult Manufacturer Support:** Reach out to the motherboard or CPU manufacturer’s support for guidance if issues persist.
Steps to Resolve Incompatibility Problems
To resolve CPU and motherboard incompatibility problems, follow these steps:
- **Confirm Compatibility:** Check the CPU and motherboard’s support lists on the manufacturer’s websites to ensure they are compatible.
- **Match Socket Types:** Ensure that the CPU socket on the motherboard matches the CPU’s socket type.
- **Update BIOS:** Update the motherboard’s BIOS to the latest version, as it may include support for newer CPUs or fix existing issues.
- **Verify Chipset Compatibility:** Check that the motherboard’s chipset supports the CPU model.
- **Check Installation:** Ensure the CPU is correctly installed in the socket, with no bent pins or misalignment.
- **Consult Support:** Contact the manufacturer’s support for further assistance if problems persist, and provide them with detailed information about your hardware.
How to determine if a CPU is compatible to a mainboard – and vice versa
To determine if a CPU is compatible with a motherboard, and vice versa, follow these steps:
- **Check Socket Type:** Ensure that the CPU’s socket type matches the motherboard’s socket. This is usually the primary compatibility factor.
- **Verify Chipset Support:** Confirm that the motherboard’s chipset supports the CPU. This information is often available in the motherboard’s manual or on the manufacturer’s website.
- **Review BIOS Requirements:** Check if the motherboard’s BIOS needs an update to support the CPU. Manufacturers often provide a list of supported CPUs for each BIOS version.
- **Consult Compatibility Lists:** Use the compatibility lists provided by the motherboard and CPU manufacturers, which detail which CPUs are supported by specific motherboards.
- **Physical Fit:** Ensure that the CPU physically fits the motherboard socket and that there is enough clearance for proper cooling.
- **Power Requirements:** Verify that the motherboard can supply the necessary power for the CPU, and check if the power supply unit (PSU) meets the CPU’s requirements.
FAQs
Can I use any CPU with my motherboard?
No, you cannot use just any CPU with your motherboard. You must match the CPU with the correct socket type, chipset, and ensure that the BIOS version supports the CPU.
How do I check if my CPU is compatible with my motherboard?
You can check CPU compatibility by consulting the motherboard’s manual, visiting the manufacturer’s website, or using online tools like PCPartPicker.
What happens if my CPU is not compatible with my motherboard?
If your CPU is not compatible with your motherboard, your system may fail to boot, or you could experience instability, crashes, or other performance issues.
Do I need to update my BIOS when installing a new CPU?
Sometimes, yes. If your motherboard’s BIOS does not support the new CPU, you will need to update it to the latest version available on the manufacturer’s website.
What is the difference between a chipset and a socket?
The socket is the physical interface on the motherboard where the CPU is installed, while the chipset is a group of microchips that manage data flow between the CPU and other components.
How do I know what CPU my motherboard supports?
To find out what CPU your motherboard supports, check the motherboard’s manual or website for a compatibility list, verify the socket type, and ensure the chipset supports your desired CPU.
Is any CPU compatible with any motherboard?
No, not all CPUs are compatible with every motherboard. Compatibility depends on matching socket types, chipsets, and BIOS versions. Always check your motherboard’s specifications to ensure it supports your chosen CPU.
What determines which CPU is supported by a motherboard?
A motherboard supports specific CPUs based on matching socket types, compatible chipsets, and BIOS versions. Check your motherboard’s manual or manufacturer’s website for a list of supported processors.
Can all motherboards use all CPUs?
No, not all motherboards can use all CPUs. Compatibility depends on matching the CPU’s socket type and chipset with the motherboard. Always check your motherboard’s specifications to find supported CPUs.
How do you know what your motherboard can handle?
To know what your motherboard can handle, check its manual or manufacturer’s website for specifications on supported CPUs, RAM types, and maximum capacities. This information ensures you choose compatible components.
Can a new motherboard work with any type of CPU?
No, a new motherboard won’t work with any CPU. It must match the CPU’s socket type and chipset. Always verify compatibility in the motherboard’s specs or manufacturer’s website before purchasing.
Are all CPUs universal?
No, not all CPUs are universal. Each CPU has specific socket and chipset requirements. Compatibility depends on matching these factors with your motherboard, so always check your motherboard’s supported CPU list.
Can you reuse a CPU on a different motherboard?
Yes, you can reuse a CPU on a different motherboard, but make sure the new motherboard has a compatible socket type and chipset. Always check compatibility before swapping components.
Are all motherboards interchangeable
No, motherboards are not interchangeable. They must match the CPU’s socket type, RAM specifications, and other components. Always check compatibility with your existing parts to ensure a proper fit.
Are there motherboards that support multiple CPUs?
Yes, some motherboards support multiple CPUs, typically used in high-performance or server systems. These motherboards must be specifically designed for multi-CPU setups, so always check the specs and compatibility.
Conclusion
Selecting the right CPU and motherboard combination is crucial for building a stable and high-performing PC. By understanding the key factors like socket type, chipset compatibility, BIOS version, and power requirements, you can ensure that your components work seamlessly together. Whether you’re building a new system or upgrading an existing one, taking the time to research and confirm compatibility will save you from potential headaches and ensure that your system performs at its best.
